10 Channel SFX Pyrotechnic Firing System

🇬🇧 Download English User Guide [PDF]

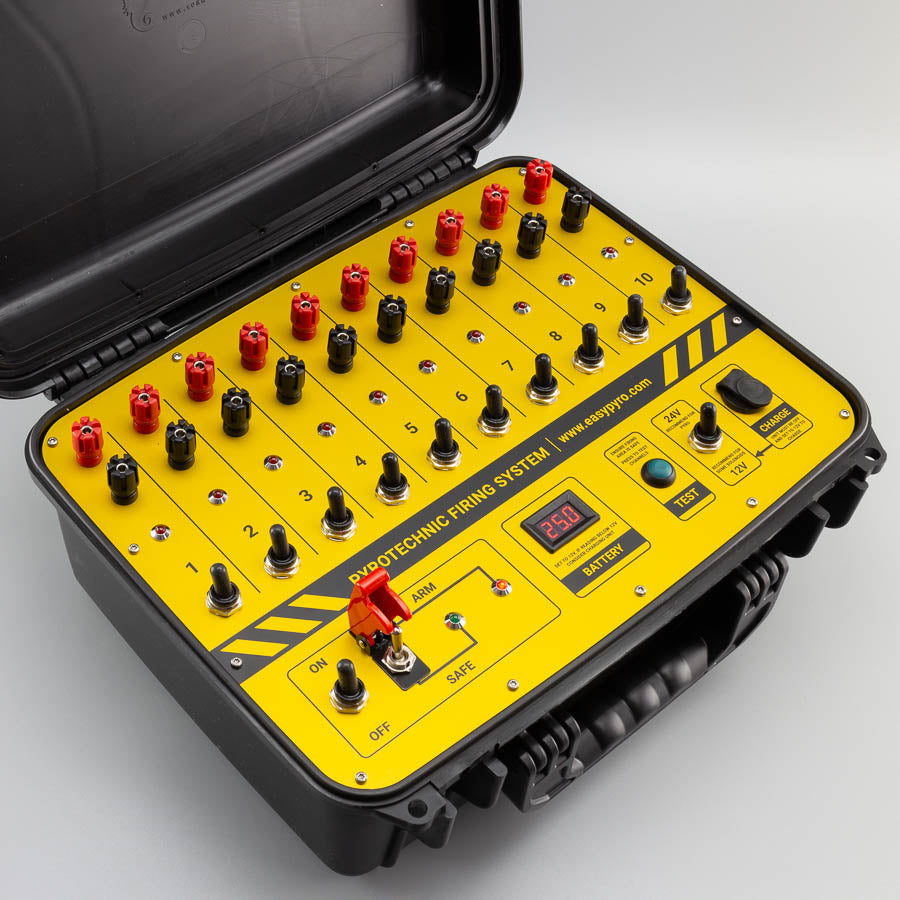

Built for the demands of film production, pyrotechnic SFX and live events, our 10 Channel SFX Pyrotechnic Firing System delivers reliable, precision-controlled ignition in any environment.

This 10 Channel version has several advantages over our budget-friendly 5 Channel Firing System.

• High capacity battery
• Option for mixing Momentary and Latching switches for Pyro and Solenoids
• Low cost per channel = more capacity for your money
• More clearance between terminals for easier operation

Built with care by EasyPyro in the UK.

Firing System Features

✅ Intuitive & Simple Operation!
We really believe that the best products are simple to operate. Anyone with minimal training can pick up our pyrotechnic firing systems and operate them safely.

✅ Internal batteries
No more bulky external battery packs and cables.

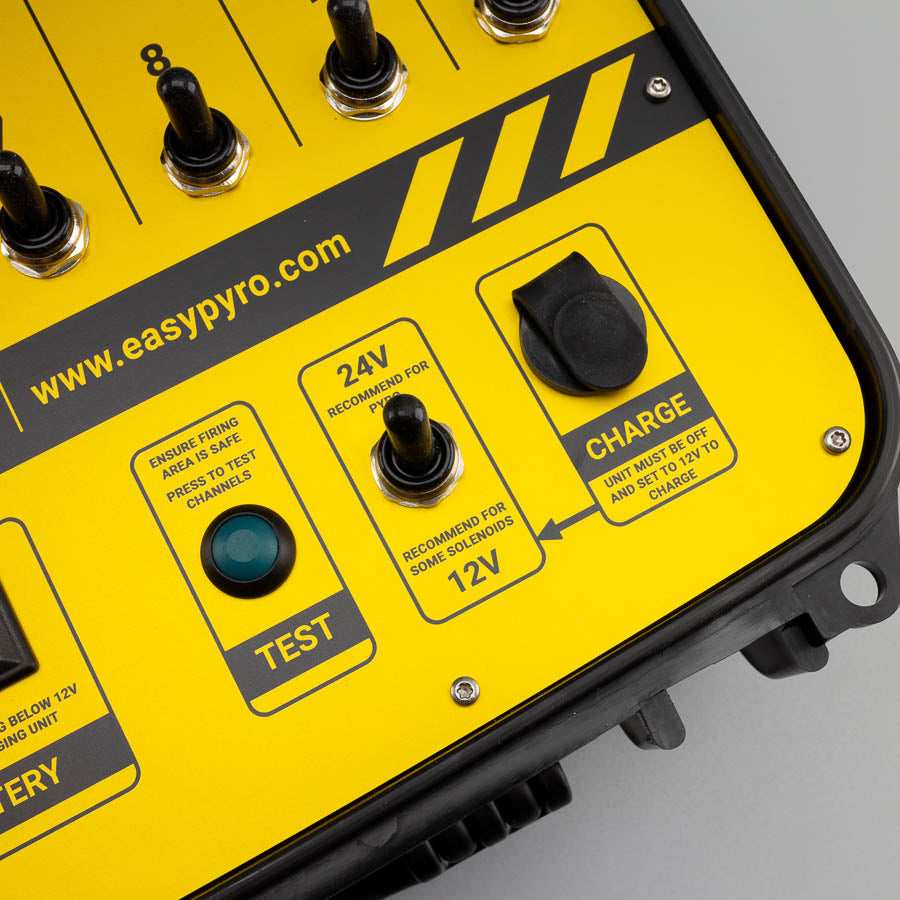

✅ Selectable 12V / 24V
Control 12V and 24V pyro and solenoids at the flick of a switch.

✅ High Current Outputs
Massively over-rated components can handle high current surges >20 Amps.

✅ Large waterproof toggle switches
Don't fumble with small buttons. Large toggle switches with positive click action.

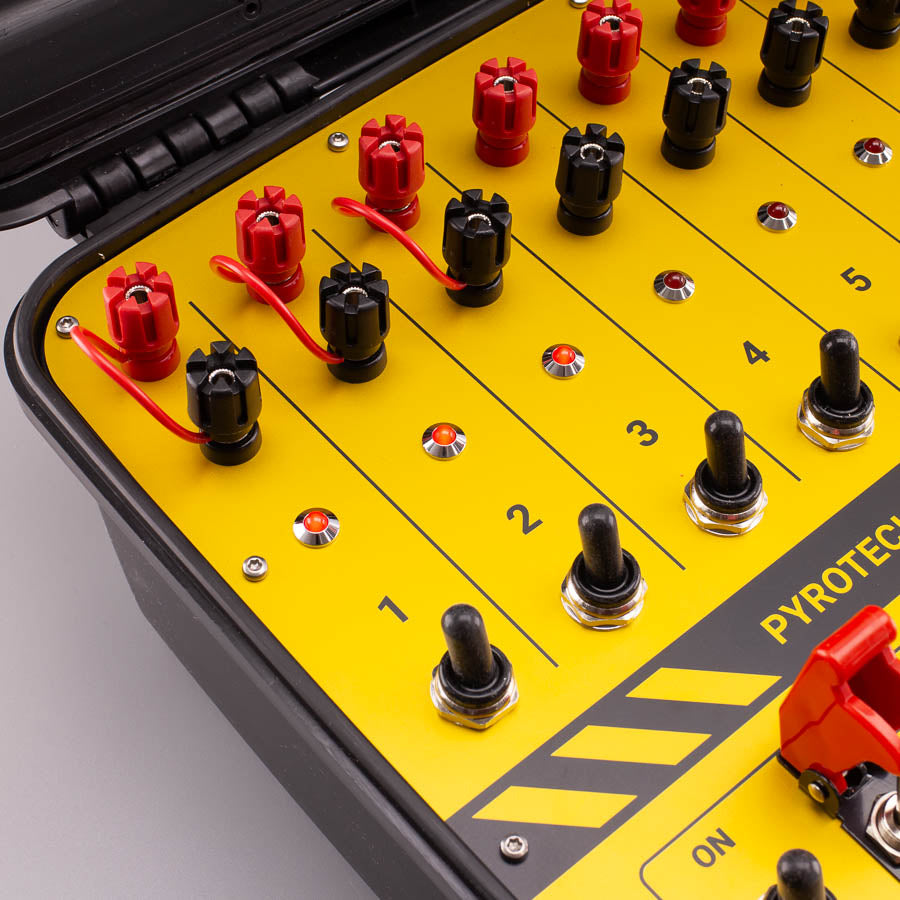

✅ Strong screw down terminals
Secure connection with Nickel-Plated Brass screw-down terminal posts.

✅ 3mm Printed Aluminium Front Panel
Strong aluminium front panel. Unlike plastic or traffolyte used on other firing systems, aluminium is resistant to fire, chemicals, UV and impact.

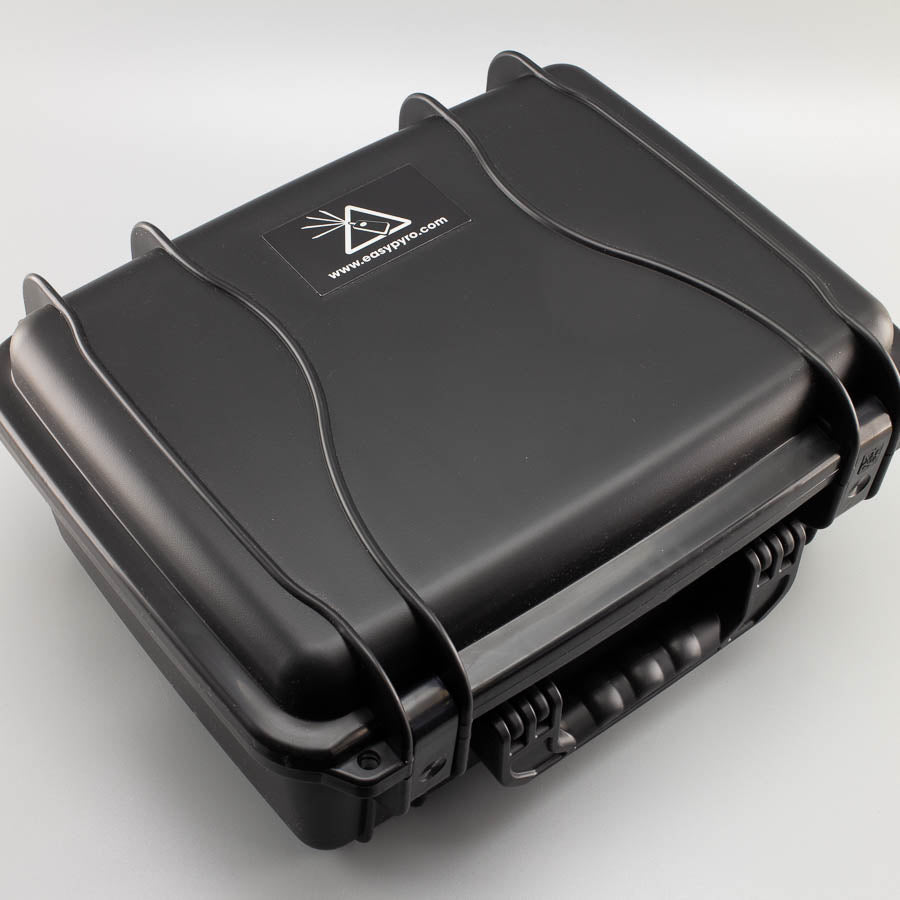

✅ Waterproof Armoured Case
The system is built into a strong "Made in USA" Seahorse™ armoured case for protection against dirt and damage.

✅ Continuity Test
Bright visual continuity test on all channels for checking connections.

✅ Battery Meter
Battery meter for checking exact battery voltage.

✅ International Battery Charger Supplied
We ship these pyrotechnic firing systems all over the world. We supply a smart international battery charger that will work anywhere.

✅ High quality and great support
Made by us in the UK 🇬🇧, these pyrotecnic firing systems will provide many years of service.

Pyrotechnic Firing System Video

[Video shows Momentary and Latching switch options]

Firing System Tech Specs
