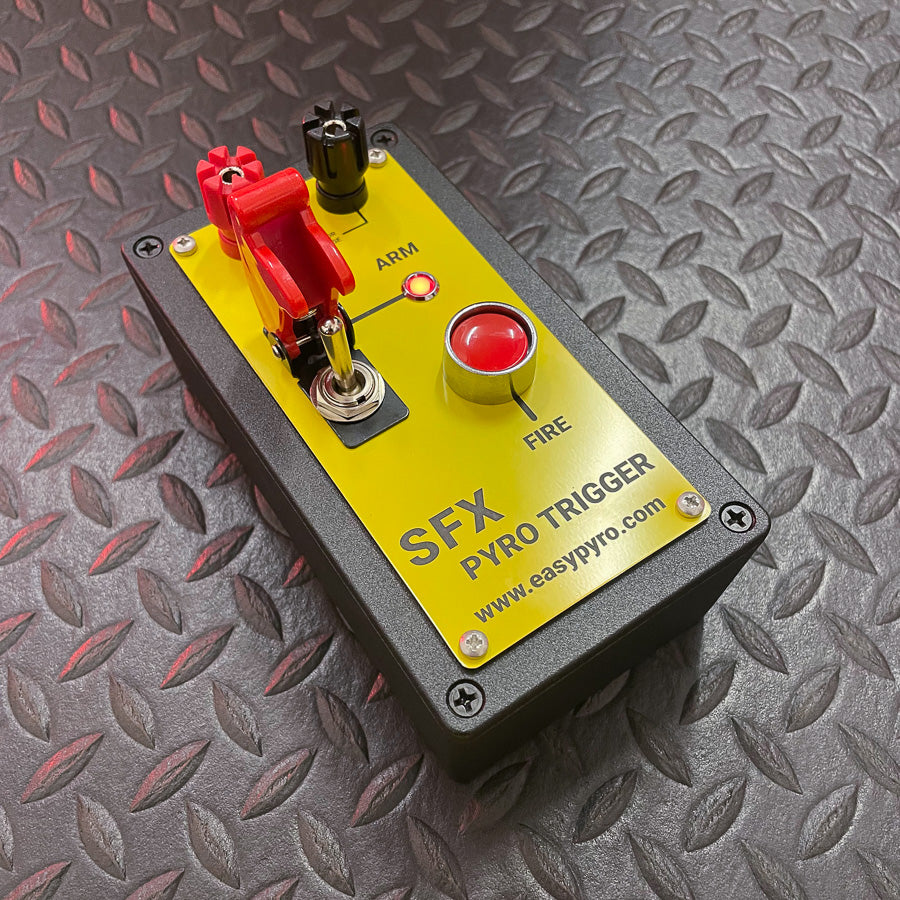

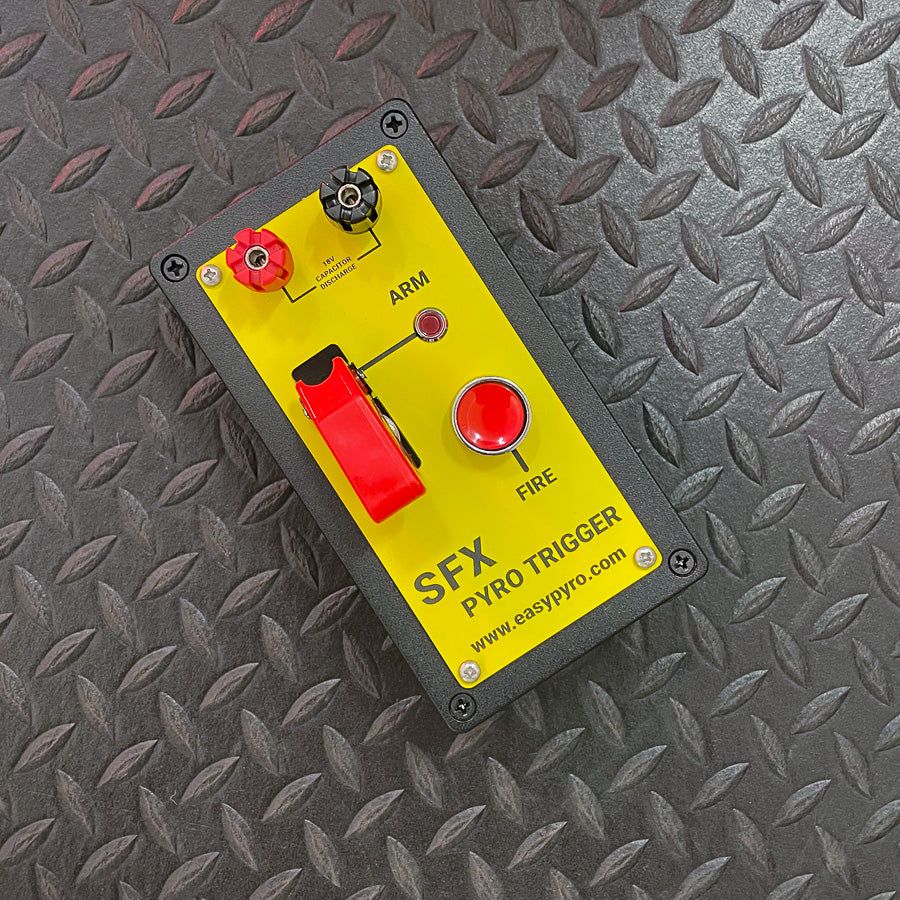

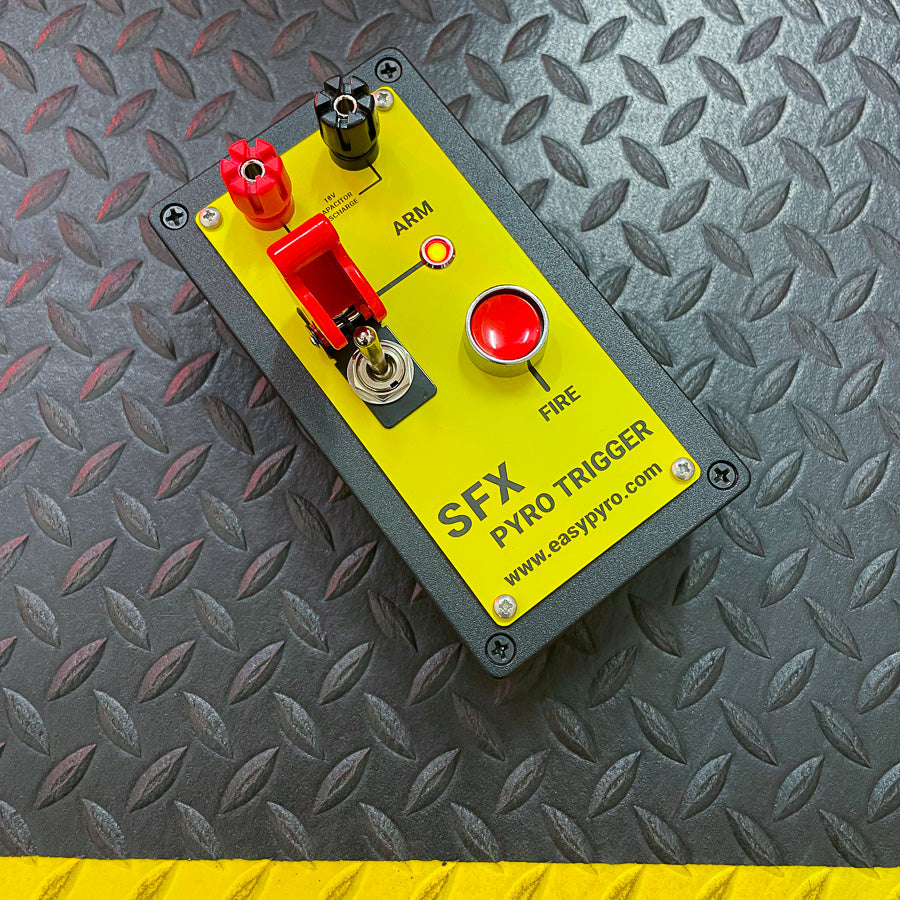

SFX Pyro Hit Box
SFX Pyro Hit Box
Couldn't load pickup availability
Designed specifically for the demanding Film, TV and Live Event pyrotechnics environment.
Built to be extremely rugged, the single channel Pyro Hit Box boasts a solid aluminium enclosure, simple controls and a large, protected fire button.
Ideal for single operator control of pyrotechnics, stage effects or air valves.
Connect squibs, e-match igniters, robotics or other pyro to the unit for a quick and easy way to fire them.
Features
✅ Incredibly strong and robust construction
✅ Intuitive & easy to use controls
✅ Capacitor Discharge 18 Volt output
✅ Bright ARM Indicator
✅ Durable
✅ Robust
✅ Designed & manufactured in the UK
Technical Specifications
Battery | 2 x 9V PP3 (capacitor discharge output) |
Size | 153mm x 83mm x 50mm |
Fire Current | Above 20 A initial pulse, fire many pyro in parallel. |
Fire Voltage | 18 Volt (discharge will equal battery voltage) |
Weight | 500g |
Terminals | 4mm banana plug / screw down binding post |
